CU 165 - Okin - Gardhen Bilance

Description

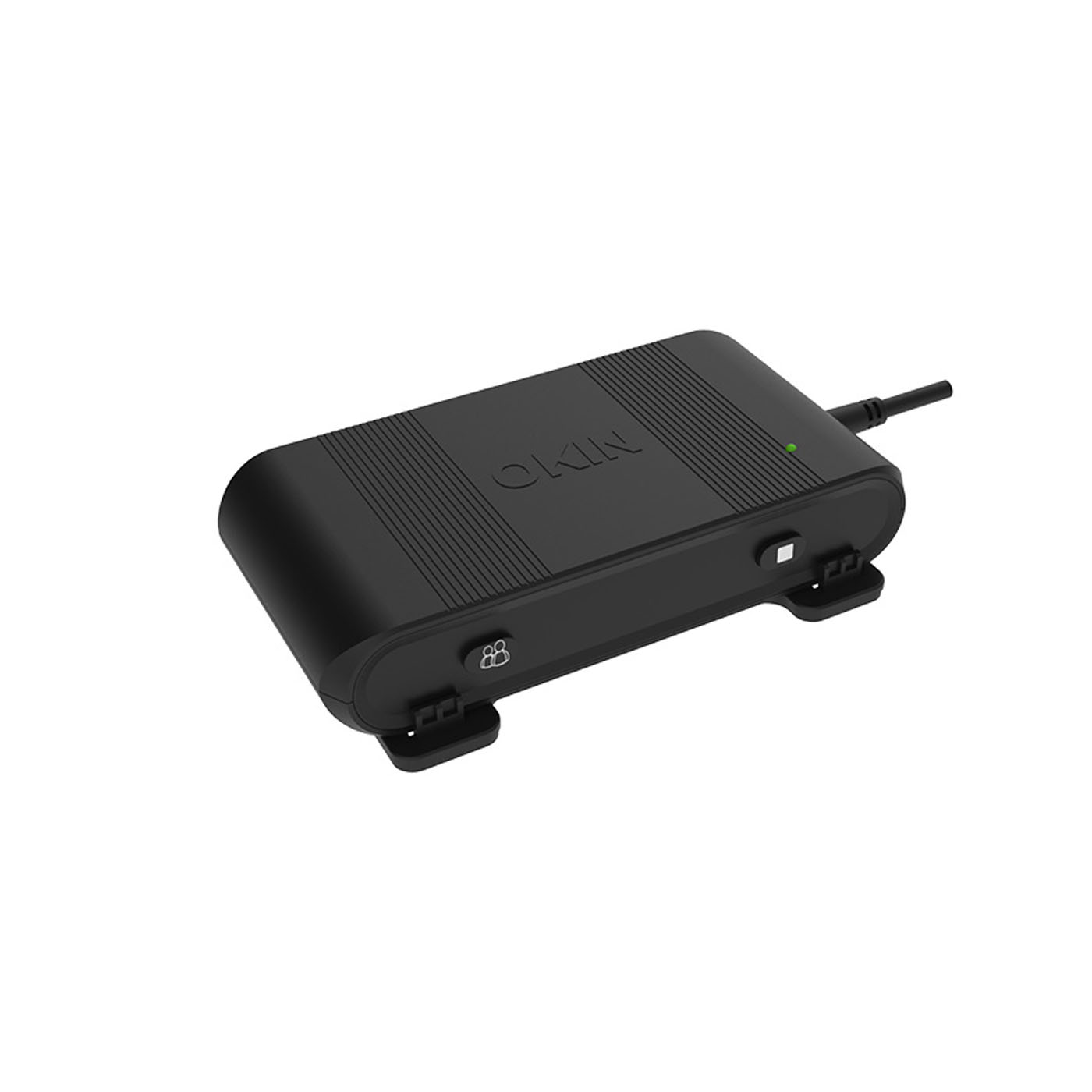

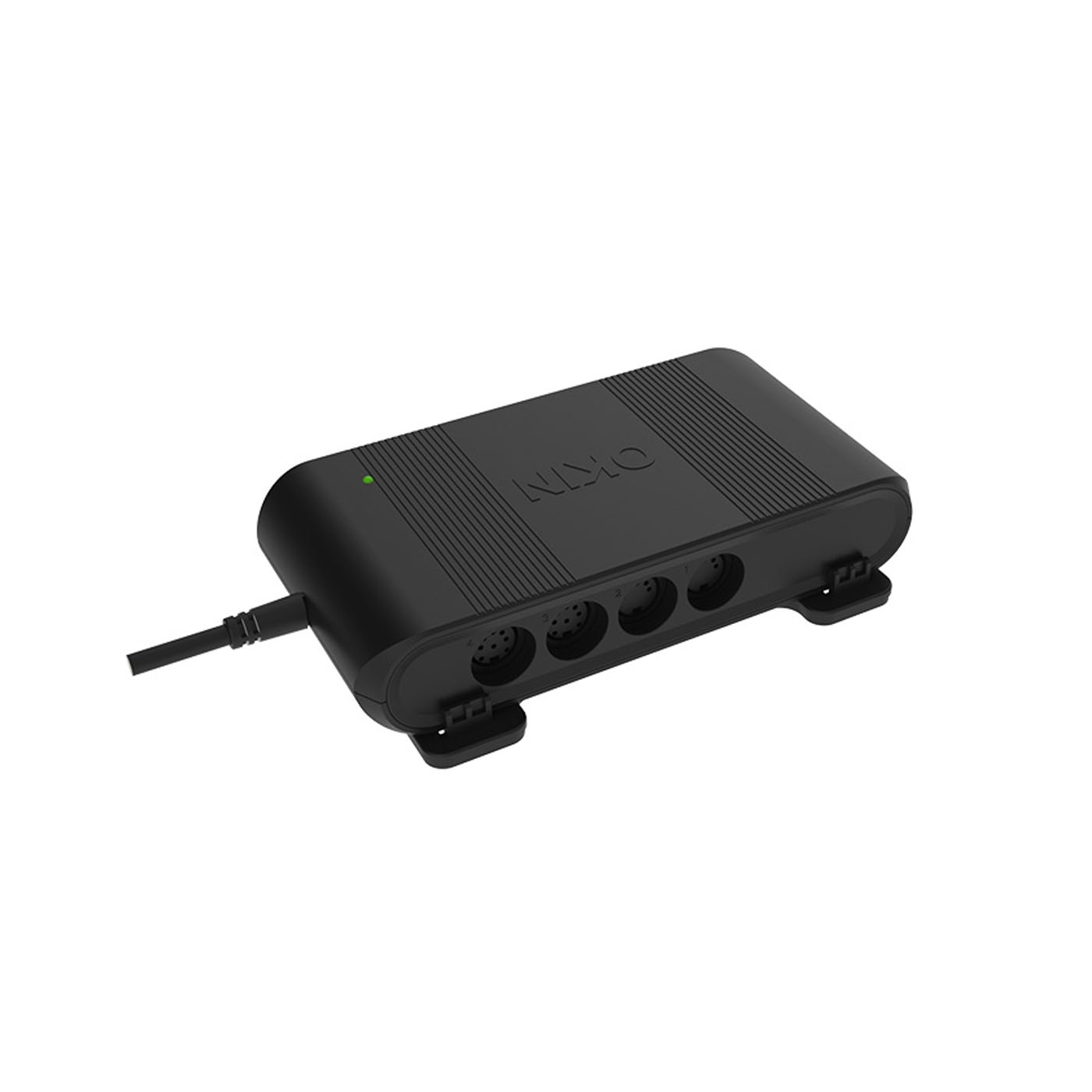

CU165: WIDE RANGE OF FUNCTIONS IN A COMPACT HOUSING

The CU165 control unit is ideal for complex applications. It can connect up to four drives with a Hall sensor and PWM control unit, and also features built-in bi-directional 2.4 GHz radio control. Signals from the wireless hand-held transmitter can be reliably transmitted thanks to OKIN’s patented, absolutely interference-free 2.4 GHz radio transmission technology. Integrated Bluetooth enables convenient operations using a smartphone and tablet. The CU165 can be combined with all OKIN wireless hand-held transmitters (2.4 GHz bi-directional) as well as with the OKIN Powerpack. Customized programming of the control unit is also possible.
The very compact design and the stylish housing without visible screw connections ensure a high degree of versatility. Using the corresponding mounting plate, this unit is easy to install onto furniture. An external voltage source is used to ensure the power supply. The CU165 control unit also comes with an over-current switch-off mechanism to optimally protect the system and a separate housing key to activate the return (reset) adjustment.

Max. 4 drives with Hall sensor
Integrated 2.4 GHz radio bidirectional controller
Integrated Bluetooth for iOS and Android
Power supplied via external voltage source (DC)
Key for reset function
Mounting plate

Download

MANUALE

DATASHEETS
