Francis Scale

Tables d’examen

Italian design and technology in the world

Description

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

Gardhen Bilance - Apri scheda PDF

Frequent usage

Ambulatory
Emergency

Benefits

Weighing system:

  • The device is equipped with an integrated digital weighing stystem, metrologically approved and at the top of accuracy compliant to directive NAWI 2014/31/EU.
  • The weight is displayed on a touch screen HD 10.1” with a 160° visual angle (the display controls also bed’s movements).
  • Low voltage power
  • Box in palstic with IP65 insulation.
  • Soft Touch Button to switch the screen on
  • POST – Power-on Self Test.
  • Countdown for weight loss.
  • Full scale limit.
  • Scale stabilizer.
  • Weight loss alarm.
  • Patient exit alarm.
  • Programmed maintenance alarm.
  • Battery indicator.
  • System’s updates.
  • Patient’s identification data.
  • Patient’s place indicator.
  • Automatic zero at switch-on.
  • Tare: Automatic and manual, always visible.
  • Reading mode: This features will enlarge the section related to the weight on the screen up to 8,5”
  • Initial weight: Automatic initial weight memorization into patient’s personal data sheet. All the data will be transmitted.
  • automatically to the USB and Ethernet port with Checksum protection.
  • Final weight: Automatic final weight memorization into patient’s personal data sheet. All the data will be transmitted automatically to the USB and Ethernet port with Checksum protection.
  • Weight loss: Graphical and numerical display of the weight.
  • Optimized graphic with instantaneous weight display – weight loss duration – weight loss delta – countdown. Excellent digital graphic and prompt displaying of the following data: weight loss – weight loss time – weight loss delta – countdown, with relative graphic representation; Intelligent system that recognizes the presence of the patient on the bed.
  • Unit of measurement indicator: The unit of measurement can be choose between
    kgs and lbs.
  • With a max load capacity of 200 kg automatic displaying of the minimal division of 20 g up to 60 kg, 50 g up to 150 kg and of 100g up to 200 kg.
  • Triple scale option.
  • Converter: 24 bit, 10000 DIVISIONS.
  • Automatic data transmission to ports.
  • Memory functions up to 20.000 weighing.
  • Interfaces: No.1 Ethernet + N°2 USB (interfaces scan RS232/USB) – BT and Wi-Fi
    (optional).
  • Battery status indicator.
  • Hour and date always visible.
  • PASSIVE MOBILISATION Programme.
  • Six motors single or simultaneous activation.
  • PUSH&GO motors system.
  • Up to 5 available memories.
  • Opprtunity to switch-on up to 4 external devices (e.g lamps, electric bell, operator advise).
  • Display lightning control.
  • Screen saver.
  • Night mode.
  • Smart function.
  • Communication system between multiple indicators through Ethernet and WiFi.
  • Complete check through app for Android/ Ios / Windows and GBSmart.
  • Remote parameter control.
  • Displaying of user manual and service manual.
  • Connection to digital devices through RS485.
  • Progammed maintenance option.
  • Tampering protection with code NSA.
  • Tampering protection cells ANTISWAP.
  • Access register.
  • Failure and malfunction handling.
  • Error reset.
  • Assistance call-button from the device.
  • Remote failure identification.
  • Remote maintenance.
  • Remote tare verification (only when digital  load cells are present).
  • Remote locale software’s update.
  • Digital identifying label.
    Language setting: English – Italian – German – Spanish – French.

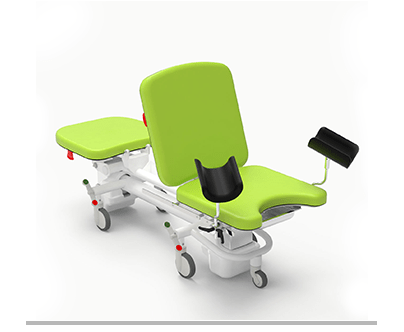

Couch:

  • High performances and long lifetime are ensured by its sturdy structure and by the robust frame.
  • The frame is crushproof and it is designed to avoid any tilt and it is safe also for oversize patients.
  • The coating is made out of special leatherette. It is certified as antibacterial and antimycotic and it is easy to clean.

Standard configuration

  • Lying surface divided in 2 sections with servo-assisted backrest’s adjustment.
  • Adjustable backrest 0-70° with gas spring.
  • Reinforced frame, made out in steel painted with epoxy paint enriched with antibacterial. The colour is customizable upon request.
  • Quick release of the backrest, it allows to perform the cpr manoeuvre – Equipment code AC8L.
  • Fixed height base.
  • Glides.
  • Leatherette upholstery classs 1IM; antimycotic, antibacterial, stain resistant. It can be sanitized with the most common type of detergents. The colour is
    customizable upon request – Equipment code AC87/1.
  • Mattress made out in high density expanded foam.
  • Paper roll holder located behind the backrest – Equipment code AC11.
  • Integrated weighing system.
  • Digital multifunction scale display, placed on the back of the backrest – Equipment code AC167.
