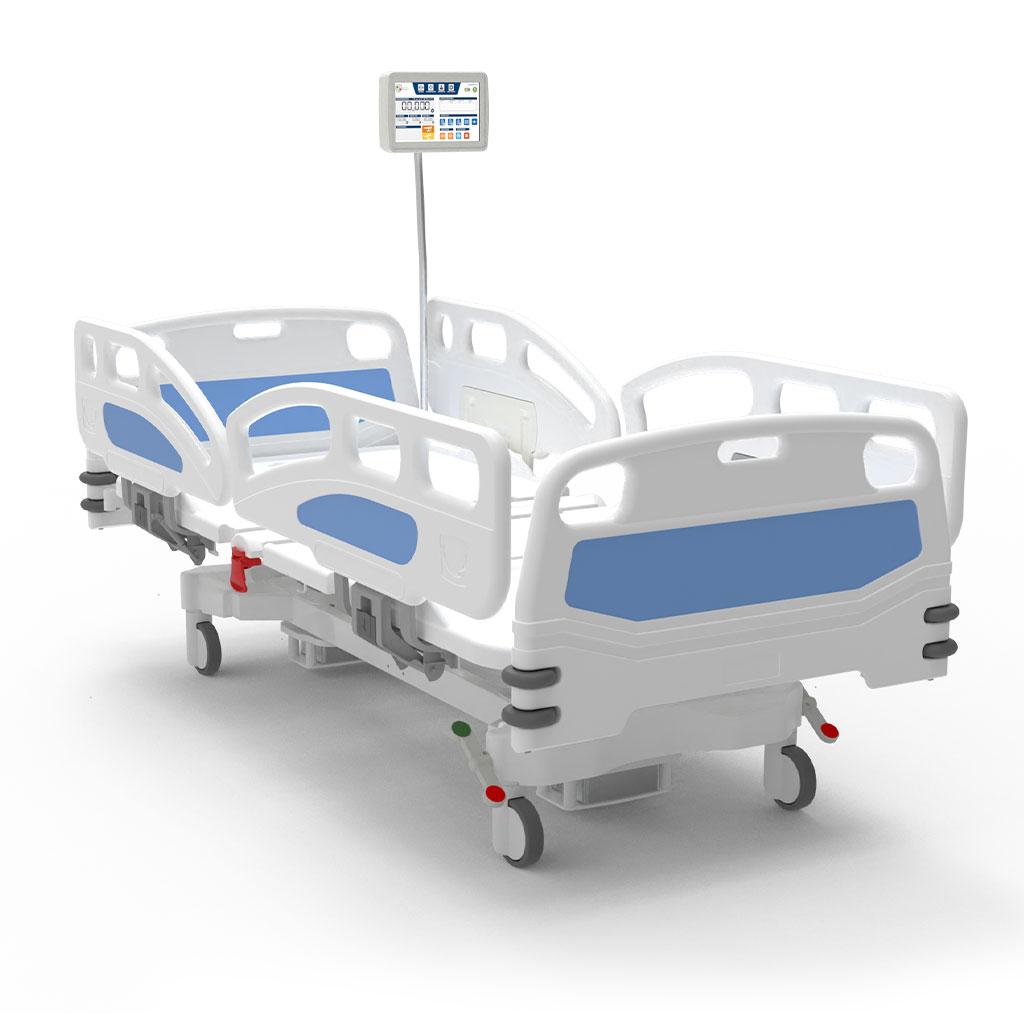

Alex

Description

Frequent usage

All clinics area
Dialysis
Intensive care hunit

Benefits

Weighing system

The device is equipped with a digital weighing system integrated in the structure of the bed that holds the record of great metrological fidelity, in compliance with the restrictive requirements of NAWI 2014/31/EU. • The weight is displayed on a touch screen HD 10” with a 160° visual angle (the display controls also bed’s movements).
Low voltage power
Box in palstic with IP65 insulation.
Soft Touch Button to switch the screen on
POST – Power-on Self Test
Countdown for weight loss
Full scale limit
Scale stabilizer
Weight loss alarm.
Patient exit alarm.
Programmed maintenance alarm.
Battery indicator
System’s updates
Patient’s identification data
Patient’s place indicator
Automatic zero at switch-on
Tare: Automatic and manual, always visible
Reading mode: This features will enlarge the section related to the weight on the screen up to 8,5”
Initial weight: Automatic initial weight memorization into patient’s personal data sheet. All the data will be transmitted
Automatically to the USB and Ethernet port with Checksum protection.
Final weight: Automatic final weight memorization into patient’s personal data sheet. All the data will be transmitted automatically to the USB and Ethernet port with Checksum protection.
Weight loss: Graphical and numerical display of the weight.
Optimized graphic with instantaneous weight display – weight loss duration – weight loss delta – countdown. Excellent digital graphic and prompt displaying of the following data: weight loss – weight loss time – weight loss delta – countdown, with relative graphic representation; Intelligent system that recognizes the presence of the patient on the
bed.
Unit of measurement indicator: The unit of measurement can be choose between kgs and lbs.
Automatic triple scale display:
a. with a max load capacity of 200 kg automatic displaying of the minimal division of 20 g up to 60 kg, 50 g up to 150 kg and of 100g up to 200 kg.
b. with a max load capacity of 300 kg automatic displaying of the minimal division of 20 g up to 60 kg, 50 g up to 150 kg and of 100 g up to 300 kg.
Converter: 24 bit, 10000 DIVISIONS.
Automatic data transmission to ports.
Memory functions up to 20.000 weighing.
Interfaces: No.1 Ethernet + N°2 USB (interfaces scan RS232/USB) – BT and Wi-Fi (optional).
Battery status indicator.
Hour and date always visible.
PASSIVE MOBILISATION Programme.
Six motors single or simultaneous activation.
PUSH&GO motors system.
Up to 5 available memories.
Opprtunity to switch-on up to 4 external devices (e.g lamps, electric bell, operator advise).
Display lightning control.
Screen saver.
Night mode.
Smart function.
Communication system between multiple indicators through Ethernet and WiFi.
Complete check through app for Android/ Ios / Windows and GBSmart.
Remote parameter control.
Displaying of user manual and service manual.
Connection to digital devices through RS485.
Progammed maintenance option.
Tampering protection with code NSA.
Tampering protection cells ANTISWAP.
Access register.
Failure and malfunction handling.
Error reset.
Assistance call-button from the device.
Remote failure identification.
Remote maintenance.
Remote tare verification (only when digital load cells are present).
Remote locale software’s update.
Digital identifying label.
Language setting: English – Italian – German – Spanish – French.

Device

Ergonomic lying surface, divided in sections, protected by thermoformed removable ABS easily sanitizable.
Lying surface height at 42 cm of the is extremely comfortable. Performances are improved by two motorized columns and integrated weighing system.
Reinforced frame in S235JR steel, made stainless through a treatment with thermosetting epoxy paint.
The structure is designed to allow an easy sanitization with the most common used detergent.
Head and foot board are made out of techno polymer. They can be easily removed through dedicated mechanism. Lightweight and sturdy at the same time.
Predisposition to lateral protective system (see standard features).
Low voltage motors. Anti-crushing and anti-shearing.
Quick release of the backrest through dedicated lever for CPR emergency manoeuvre.
Cardiologic position with roto-translation of the backrest to avoid chest’s crushing.
Emergency power supply through rechargeable batteries – 10 cycles.
Clearance for hoist.
Easy access to the floor underneath the device for cleaning.
Highly performing wheels to make the transport of the patient easy.
Thermoformed ABS base cover.
Any part or component of the bed are subject to wear and tear.
Resistant to scratch and to all the chemical substances used in hemodialysis therapy.
Absence of parts that need to be greased.
Hospital bed available in 4 different sizes
Customizable with different colours
Latex free and phtalates free.

Standard features

Lying section in 4 sections and 3 joints covered with removable thermoformed, removable and washable ABS panels. Lying surface height at 42 cm.
Motorized backrest section at 0°-70°.
Femoral section at 0°-25°.
Servo-assisted leg section. It is moved through gas spring and it is synchronized with the femoral section 0°-35° (approx.)
Height adjustable through motorized columns
Motorized Trendelenburg and reverse Trendelenburg achievable via motorized telescopic columns with rectangular sections.
Backrest’s synchronous movement of 11 cm to reduce chest’s crushing.
Cardiologic position AC62.
Quick release of the backrest through dedicated lever for CPR emergency manoeuvre – Equipment code AC8L.
Low voltage electric motors. The motors are “spline” type to avoid crushing.
Painted with epoxy and thermosetting powders – colour chart at page 5.
Equipotential node.
Removable wrapping head and foot panels in techno polymer – Equipment code AC65 (available also with locking mechanisms – Accessory code AC121).
Predisposition to collapsible side rails – Equipment code AC21/S and for half foldable side rails – Equipment code AC71/S
No. 4 bumpers.
Non-marking 150 mm swivable wheels.
Hooks for bags on both sides – Equipment code AC3L.
Centralized braking system. Activated through bilateral pedals – Equipment code AC7L2/G.
Emergency battery – Equipment code AC17L.
Cable support – Equipment code AC50L.
10 buttons handset, movements are controlled by handset with a 3,5 m coiled cable. The handset is user friendly and has visual pictograms useful for partially sighted people. For patient’s safety purpose the handset is provided with an inhibition key – Equipment code AC34P. Insulation IP66.
Handset’s inhibition key – Equipment code AC34L.
Integrated weighing system.
