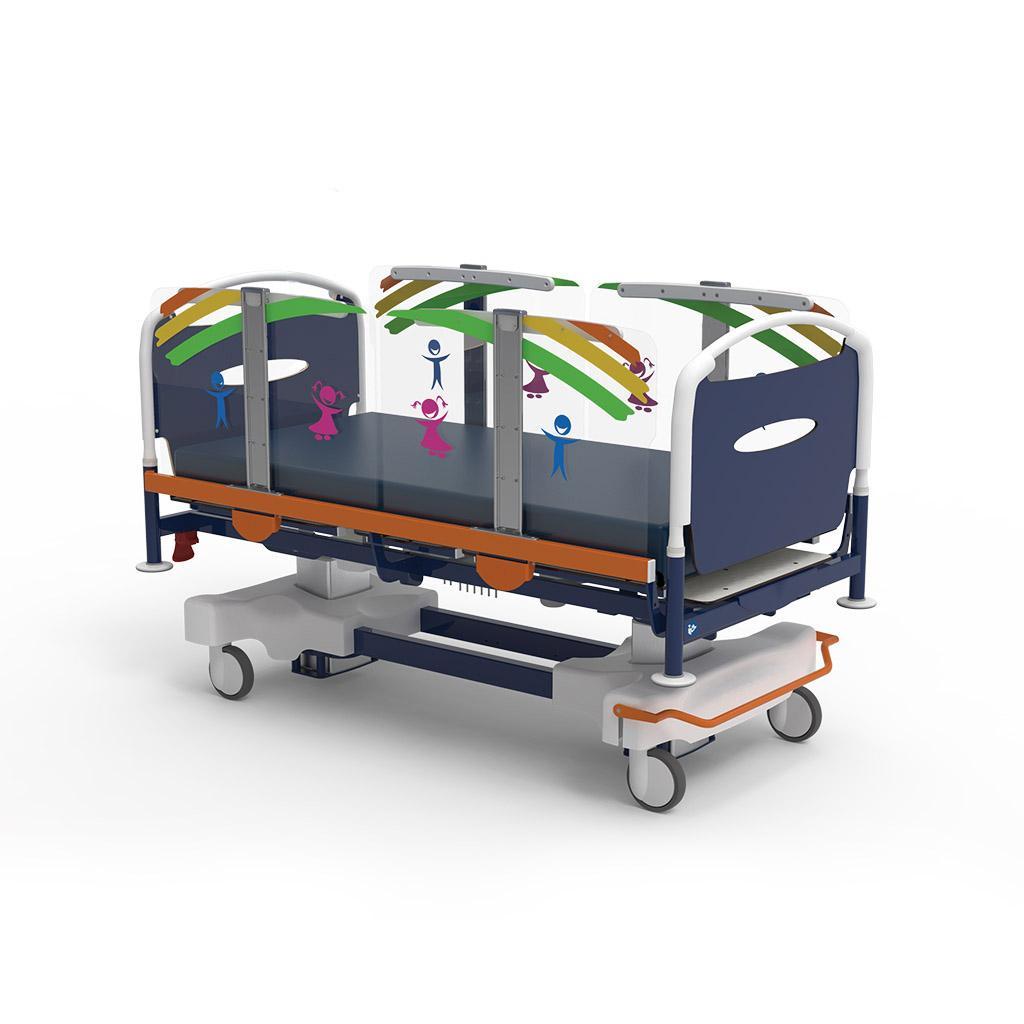

Mose Mini – Paediatric

Gardhen Bilance - Letti degenza

Hospital bed

Italian design and technology in the world


Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

Gardhen Bilance - Apri scheda PDF
Gardhen Bilance - Accessori Poltrone

Frequent usage

ICU (intesive care hunit)


  • CPR emergency levers located on both sides of the bed for backrest section quick release;
  • Low voltage spline motors;
  • Total absence of mechanism and leverism underneath the bed surface for an efficient sanification;
  • Patient surface covered with HPL panels for easy sanification;
  • Ergonomic patient surface;
  • Emergency power supply system by rechargeable batteries. 10 cycles duration;
  • Lightweight and easily removable Head/foot panels;
  • Reinforced frame
  • Clearance suitable for patient hoist;
  • Easy access to clean the floor underneath the bed;
  • Frame in high performing painted steel, with thermosetting paint enriched with antibacterial products;
  • For available colours please refer to our colour chart.
  • Lying surface height 570mm, high performing in presence of motorized columns and integrated weighing system;
  • 400mm bed extension for taller paediatric patient;
  • High load wheels allow easy movement even while the patient is on the bed;
  • Side barriers made out of transparent material, designed to protect and supervise the little patients. Handle with integrated lever for movement (see standard configuration).
  • Any parts or component of the bed are subject to wear and tear; absence of parts that need to be greased;
  • Base covered in thermoformed ABS;
  • The bed structure is designed in order to be easily cleanable;
  • Thermoformed ABS base cover;
  • Customizable scale bed;
  • Latex free;
  • Phtalates free.

Standard configuration

  • Quick release of the back section for CPR, code AC8L;
  • Low voltage motors with spline system, code AC70;
  • 4 sections patient surface;
  • Motorized back section 0-71°;
  • Motorized femoral section 0-30°;
  • Movimentation of the leg section by gas spring, synchronized with the leg section 0-35°;
  • Manual bed extension up to 400 mm (motorized version code AC61/1);
  • Epoxy painted (colour chart available);
  • Equipotential node;
  • Emergency battery, code AC17L;
  • Head and foot board in thermoplastic material with HPL panel, code AC65;
  • Surface in washable HPL panels;
  • Height adjustament column;
  • Height of the patience surface 568 mm + 400 mm;
  • Motorized Trendelenburg and reverse trendelenburg carried out by motorized telescopic columns;
  • N°4 bumpers
  • Predisposition for IV pole and patient lifter;
  • Bag holders;
  • Braking device 4×1 with directional, code AC7L2G;
  • Handset inhibition key, code AC34L;
  • Non-marking swivable wheels, 150mm diameter;
  • User holder;
  • Side barriers made out in transparent material. Handles with integrated levers for movement;
  • Integrated weighing system with manual and automatic tare function and weight loss routine;
  • 10 buttons handset.
