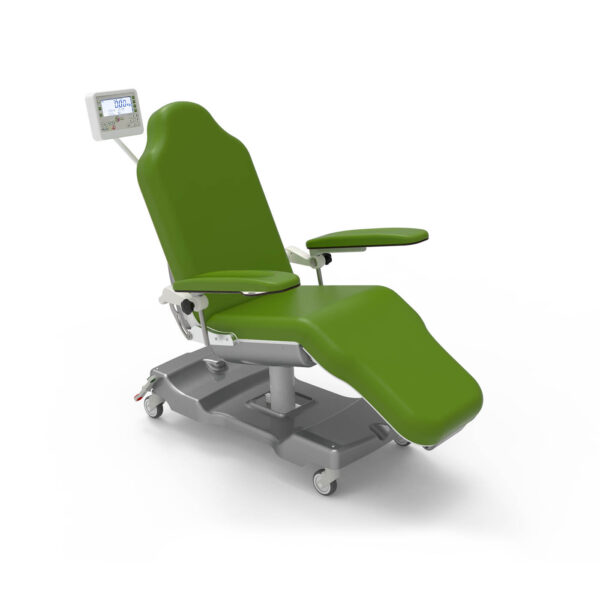

Stephen Scale H Comfort – 2.0


The chair designed for the prevention and control of cross-infection

Artikelnummer: GB0012.SP-2 Categorie: Tags: ,


Gardhen Bilance - Accessori Poltrone

Frequent usage



Weighing system:

  • STEPHEN SCALE H COMFORT has an integrated weighing system, metrologically approved and at the top of accuracy, compliant to directive NAWI 2014/31/EU;
  • LCD digital display with 180° digital angle, easily readable even from 20 meters;
  • Automatic triple scale display:
    • a) with a max load capacity of 200kg automatic displaying of the minimal division of 20g up to 60kg, 50g up to 150kg and of 100g up to 200kg;
    • b) with a max load capacity of 300kg automatic displaying of the minimal division of 20g up to 60kg, 50g up to 150kg and of 100g up to 300kg;
  • Data transmission RS232 or LAN 10/100;
  • Compliance with the more common management softwares in use in hospitals with remote data acquisition;
  • IP44 display;
  • Anti-blackout function for weight data retention
  • Long-life external emergency battery;
  • Tare weight subtraction before the treatment and during the treatment;
  • Manual and automatic tare function;
  • Weighing system made out with electronic parts manufactured in Italy;
  • The LCD display allows to keep the following parameters visible: hour; weight of the patient; inserted tare weight; inserted or removed weight; weight reduction routine; countdown for weight reduction routine; max load; weight / date / therapy’s starting time; motors movimentation; scale stabilization; weight reduction alarm; bed exit alarm; alert for programmed maintenance;
  • Stainless steel load cells with a max load of 500kg and an overload capacity of 1000kg.


  • Seamless upholstery uniquely designed for easy cleaning and effective infection control.
  • One piece cushion seat/leg: excellet ergonomy, protected from the development of pressure sores.
  • Configurable and upgradable with many accessories.
  • Painted steel frame with antimicrobial coat. Wide range of colour.
  • There isn’t any tilt in case of CPR and in all operative conditions.
  • Unique multifunctional armrest.
  • Fabric antibacterial, flame retardant, antimicotic. Resistant to alchool, hydrogen peroxide, hypochlorite sodium 5%, latex free,
    no phtalates. Available in a wide range of colours.
  • Max load standard version 200 kg.
  • Avaialble different sizes (pediatric, bariatric)

Standard features

  • Available version 2 “narrow backrest” or in alternative version 3 “rounded backrest”.
  • Painted steel frame with antimicrobial coat.
  • 2 motors for the movement simultaneous and independent of backrest and legrest.
  • Nr. 4 durable, moulded, stainless, swivel wheels ø mm 100; back side with simultaneous brake.
  • Chair controlled by an easy accessible handset with clear pictorial diagrams.
  • Trendelenburg position 10° degrees.
  • AC30/C1 armrests with synchronized movement with the backrest, rotation, height adjustment, adjustable angle, tilting 90° * *on the version 3 the tilting is about 70°
  • Soft foam cushions.
  • One piece cushion seat/leg.
  • Flame retardant fabric UNI 9175/87 and 9175FA-1/94 1IM class.
  • AC83: ABS cover for base.
  • AC84: ABS cover for seat.
  • AC85 ABS cover for leg.
  • Integrated weighing System
