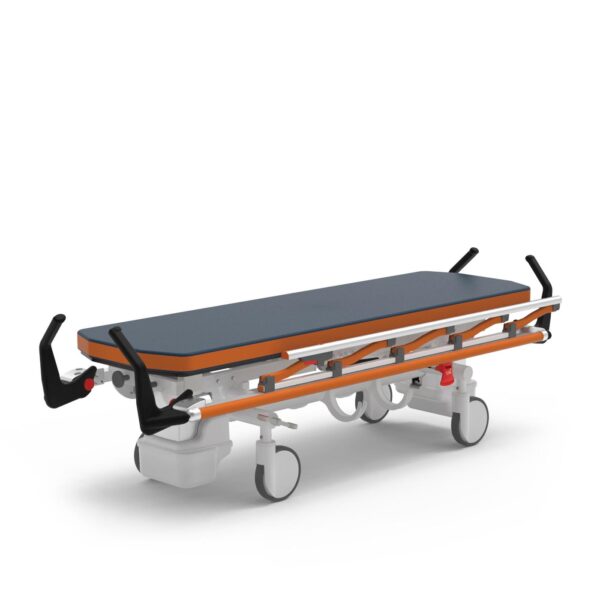

Iside – Adjustable height

Brancards

The maximum of technology at the service of functionality

Artikelnummer: GB0151.SP Categorie: Tags: ,

Beschrijving

Gardhen Bilance - Apri scheda PDF

Frequent usage

Emergency room
Patient Transport

Benefits

  • Low voltage power supply by batteries without autonomy limits.
  • Anti-tilt and non deformable frame.
  • Telescopic columns with a rectangular section that ensure extreme stability and immediate response in all operating conditions.
  • Centralized braking system, useful to ensure further stability to the device.
  • High maneuverability to facilitate transport operations as much as possible.
  • Tilting backrest by gas/electrically comand.
  • Motorized height adjustement:
    • easy access also for patient with reduced mobility.
    • Stertcher’s movement can be activated through electrical driving pedals. This feature allow the operator to keep the hands free while using the device.
  • Motorized Trendelenburg and reverse Trendelenburg.
  • Easy access for the patient through mechanical adjustment.
  • High stability.
  • No obstacles between the upper part and the base.
  • Patient surface in HPL. No sharp edges, easy to clean.
  • Foldable side rails.
  • Ergonomic and foldable handles located on both ends.
  • Perfectly suitable for any medical environment
  • It facilitate medical staff operations expecially in stressful conditions.
  • Aivailable with 3 different max load: 200 kg, 300 kg and 400 kg.

Standard configuration

  • Frame coated in thermosetting and antibacterial powders
  • 2 sections patient surface.
  • Foldable side rails couple – Equipment code ACB3.
  • Movements: motorized adjustable height 400 mm – Servomechanized backrest that can be adjusted through a gas spring. Electric version available upon request (see aivalable accessories).
  • Motorized Trendelenburg and reverse Trendelenburg through telescopic column with rectangular section.
  • Nr. 4 antistatic stainless swivable wheels Ø 200 mm – Equipment code ACB14- with simultaneous brake activated though bilateral pedal and directional system – Equipment code AC7L2G.
  • 8/10 buttons handset for the activation of the motors. Pedal controls also available upon request (see aivalable accessories).
  • Lateral bumper bars.
  • High density expanded foam mattress.
  • Removable mattress height 80 mm (aivailable 100 mm height upon request).
  • Upholstery: with anti-bacterial properties, flame retardant class 1IM, antimicotic, ecologic, latex free, phtalate free. Resistant to: alchool, sodium hypochlorite max 5%, a wide range of common used detrgent, liquid and other biological fluids. – Equipment code AC87/1.
  • Cable support – Equipment code AC50L.
  • Oxygen tank holder – Equipment code ACB10.
  • No. 4 inserts for IV pole.
  • N. 4 tipping handles.
  • Powered through 4,5 A interchangeable battery (n°2 as standard equipment) with charger included.
