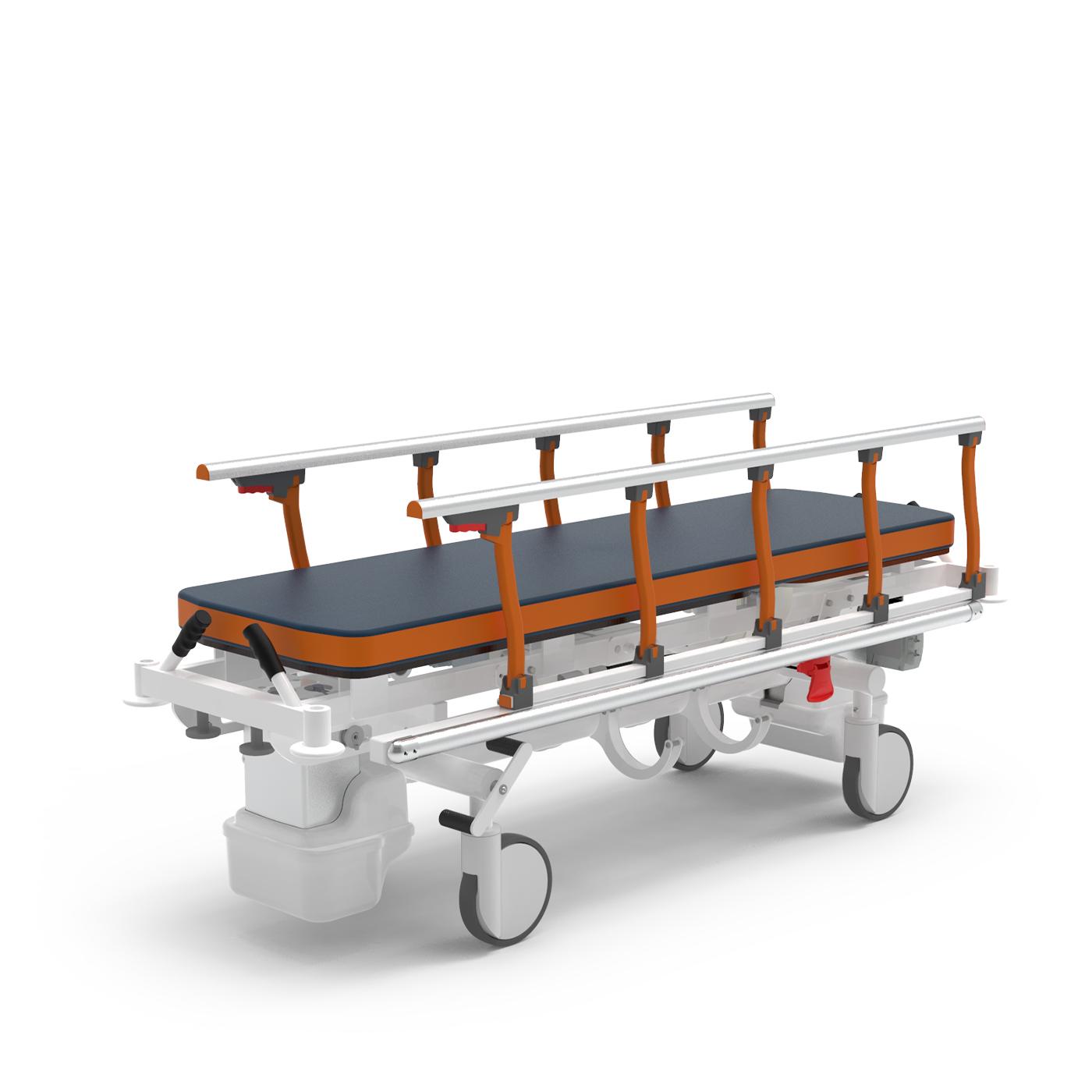

Iside 1.0 – Fixed height stretcher


Functionality and technology:
The principle of a “well done job”

UGS : GB0346.SP Catégorie : Étiquettes : ,


Gardhen Bilance - Apri scheda PDF

Frequent usage

Emergency room
Patient Transport


ISIDE 1.0 features a very sturdy frame, that grants a high shock tolerance and long life to the device;

  • Customizable patient surface height upon request;
  • Cusrtomizable patient surface size upon request;
  • Low voltage power through batteries without any limit of autonomy;
  • Non-deformable frame prevents any tilt;
  • Centralized braking system;
  • Adjustable backrest 0-90°;
  • High manoeuvrability;
  • High stability;
  • No obstacles between the upper part and the base;
  • Patient surface in HPL. No sharp edges, easy to clean;
  • Foldable side rails;
  • Lateral bumpers
  • Ergonomic and foldable handles located on both ends;
  • It simplify the activities of the medical staff especially in a highly demanding environment;
  • Safe Working Load 235kg. It is available also in versions with a higher SWL (335kg – dimensions upon request).

Standard configuration

  • Frame coated in thermosetting and antibacterial powders; (see colour chart);
  • Foldable side rails couple – equipment code ACB3;
  • N°4 ø mm 200 antistatic, stainless and swivable wheels (equipment code ACB14) with centralized brake and directional system (AC7L2G). The braking system is activated through bilateral pedals;
  • Adjustable through handset;
  • Lateral bumper bars;
  • 2 sections patient surface;
  • Mattress:
    – The mattress coat is antibacterial and antimycotic and can be washed at 90° – equipment code AC87/1;
    – Available in a wide range of colours;
    – High density expanded foam
    – Height: 80mm. (100mm version upon request);
    – Flame retardant. UNI 9175/87 and 9175FA-1/94 class 1IM;
  • N°4 foldable transport handle;
  • Power cord with cable support – equipment code AC50L;
  • Oxygen tank holder- equipment code ACB10;
  • N°4 inserts for IV pole
  • 8/10 buttons handset for the activation of the motors (pedal controls also available).
