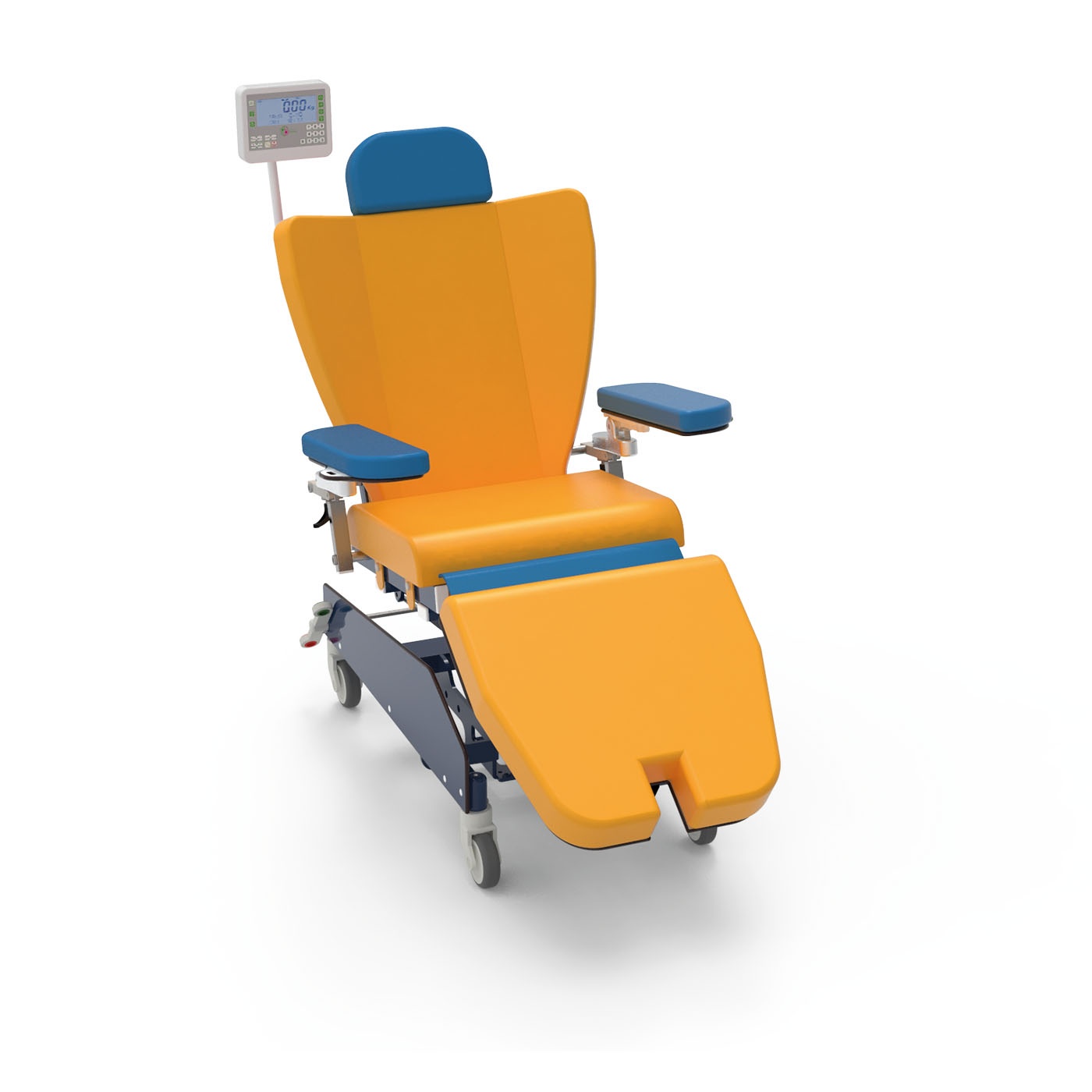

Stephen Scale H Anatomical – Junior


Fauteuils pèse-personnes

Beyond the business class

Description

Gardhen Bilance - Apri scheda PDF
Gardhen Bilance - Accessori Poltrone

Frequent usage

Dialysis
Emergency
Reduced footprint
Paediatric

Benefits

Weighing system:

  • The chair with integrated scale STEPHEN SCALE H ANATOMICAL JUNIOR has a metrologically system approved and at the top of accuracy, compliant to directive NAWI 2014/31/EU.
  • LCD digital display with 180° digital angle, easily readable even from 20 meters.
  • Automatic triple scale display:
    a. With a max load capacity of 200 kg automatic displaying of the minimal
    division of 20 g up to 60 kg, 50 g up to 150 kg and of 100g up to 200 kg.
    b. With a max load capacity of 300 kg automatic displaying of the minimal
    division of 20 g up to 60 kg, 50 g up to 150 kg and of 100 g up to 300 kg.
  • Data transmission RS232 or LAN 10/100.
  • Compliance with the more common management softwares in use in hospitals with remote data acquisition.
  • IP44 display.
  • Anti-blackout function for weight data retention.
  • Long-life external emergency battery.
  • Tare weight subtraction before the treatment and during the treatment.
  • Manual and automatic tare function.
  • Weighing system made out with electronic parts manufactured in Italy.
  • The LCD display allows to keep the following parameters visible: hour; weight of the patient; inserted tare weight; inserted or removed weight; weight reduction routine; countdown for weight reduction routine; max load; weight / date / therapy’s starting time; motors movimentation; scale stabilization; weight reduction alarm; bed exit alarm; alert for programmed maintenance;
  • Stainless steel load cells with a max load of 500 kg and an overload capacity of
    1000 kg.

Chair:

  • Structure with a reduced footprint.
  • Anti-tilt frame, it prevents any tilt in every operative conditions.
  • Frame painted with epoxy paints enriched with antibacterial. Available in a wide range of colours.
  • Simultaneous movement of back and leg section through 1 motor; it can be implemented with 2 up to 5 motors according to the requested configuration:
    – Dedicated motor for the independent movement of the backrest and the legrest (accessory code AC12).
    – Motorized column for height adjustment (accessory code AC28).
    – Dedicated motor for the inclination of the seat (accessory codes AC35/1 –
    – AC35/2 – AC35/3).
    – Dedicated motor for footrest adjustment (accessory code AC13 – AC13/1);
    (please refer to the commercial offer and the accessory catalogue;
  • Three separate cushions for back, seat and leg functional for a perfect ergonomy and posture preventing decubitus wounds.
  • The upholstery is completely removable allowing a thorough and effective sanitization reducing the risks of cross infections. A wide range of colours is available.
  • Upholstery’s features: antibacterial, flame retardant class 1IM, antimycotic, ecologic, latex free, phtalate free and resistant.
  • Armrest’s movements synchronized with the backrest.
  • Excellent and ergonomic posture with decubitus wound preventive effect.
  • Braking system ensures high stability to the device.
  • Easily sanitizable with the most common used detergents.
  • Armrest with multiple adjusment functions.
  • Max load capacity 150 kg.



Standard features

  • Painted steel frame in thermosetting powder. Wide range of colours at page 6.
  • Lying surface divided in 4 sections (headrest, backrest, seat and leg).
  • Simultaneous movement of the back section and the leg section through 1 motor.
  • 10° Trendelenburg position (shock position as alternative).
  • Headrest joint to the backrest.
  • Armrest’s movements synchronized with the backrest. The armrests are completely removable and can be rotate, tilted and overturned at 90°; (please refer to the accessories catalogue for other version of armrests).
  • No. 4 wheels Ø 100 mm antistatic, sturdy, stainless and swivable.
  • Simultaneous brake on rear wheels in chromed steel – Equipment code AC7P1G.
  • Chair’s movements are controlled by handset with a 3,5 mtl coiled cable. The handset is user friendly and has visual pictograms useful for partially sighted people. Handset is equipped by 10 buttons with 2 memories. For patient’s safety purpose the handset is provided with an inhibition key – Equipment code AC34P. Insulation IP66.
  • Bilateral handset support – Equipment code AC25P.
  • Side panels in HPL – Equipment code AC49.
  • Easily removable soft foam independent cushions.
  • Upholstery in flame retardant leatherette UNI 9175/87 e 9175FA-1/94 class 1IM – Equipment code AC87/1
  • Integrated wheighing system.
  • Multifunction LCD display placed to the side of headrest.
