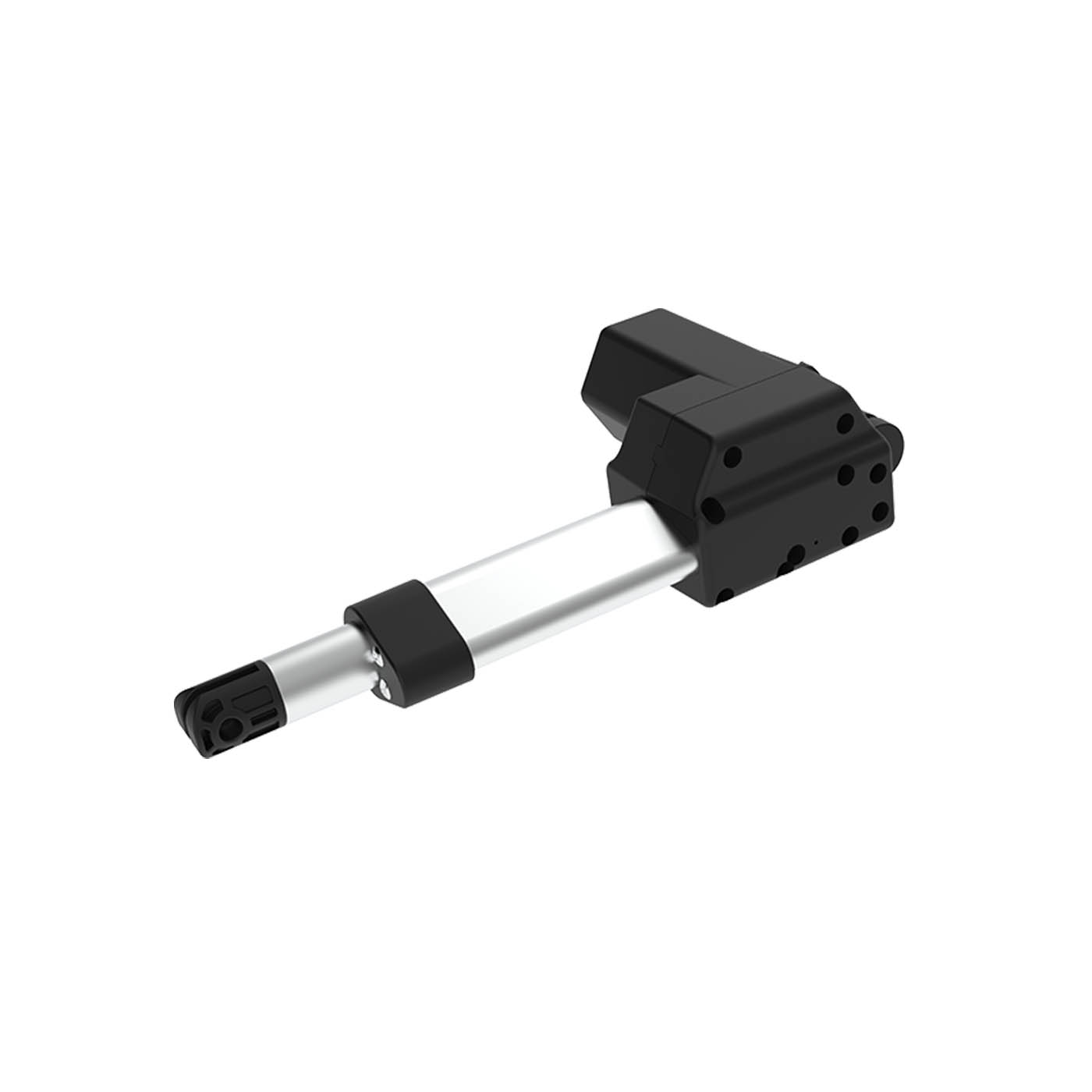

DELTADRIVE - Okin - Gardhen Bilance

Description

Stable, tried and tested for powerful applications, e.g. for height, back and foot rest adjustment on beds and armchairs. Durable worm gear with high self-locking function. Extra-powerful gear for increased pressure absorption.

Load capacity: max. 6000 N push / max. 4000 N pull
Adjustment speed: max. 44 mm/sec. *
Stroke length: max. 500 mm (+/- 1 mm)
Equipment options: mechanical end stop (MES), stroke pipe clevis made of die cast zinc, gear clevis as clip, Hall sensor

* depending on drive configuration at constant 24/29 V DC without load
